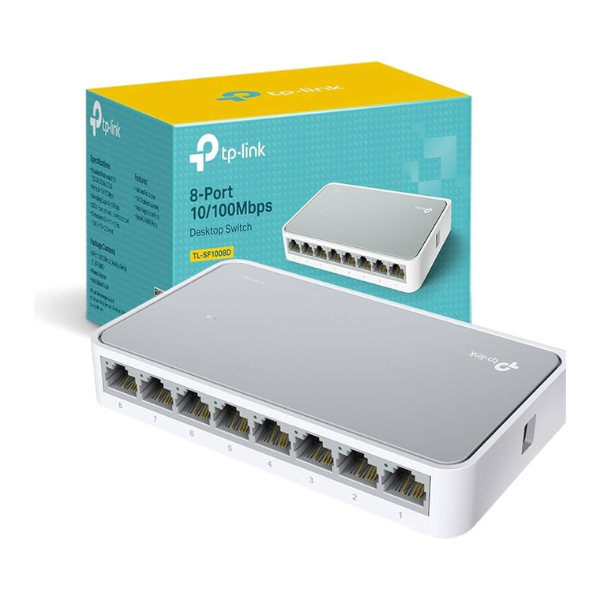

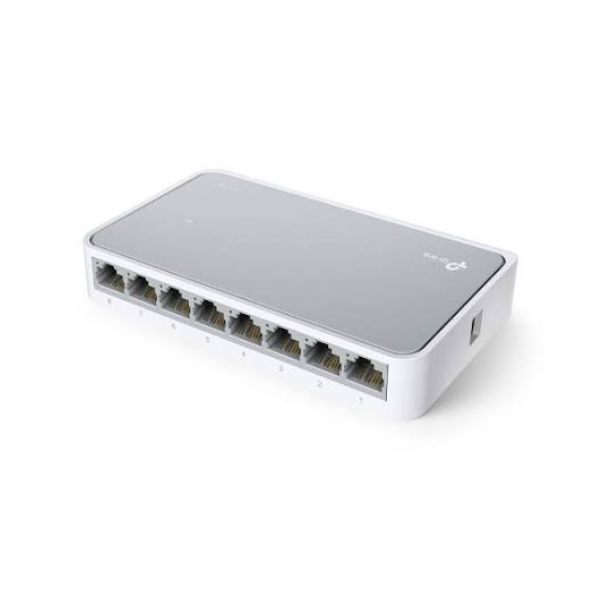

SWITCH - TP-LINK TL-SF1008D 8 PORT 100/100M

Availablity: In stock

Rs. 4,150.00

8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX Green Ethernet technology saves power consumption IEEE 802.3x flow control provides reliable data transfer Plastic case, desktop design Plug and play, no configuration required 2 years

SKU: TP747576

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x

CSMA/CD

Interface 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity Fanless

External Power Supply 100-240VAC, 50/60Hz

(Output: 9VDC / 0.6A)

Buffer Size 768Kb

Data Rates 10/100Mbps at Half Duplex ;

20/200Mbps at Full Duplex

LED Indicator Power

Port network activity (on the network module)

Dimensions ( W x D x H ) 5.3 × 3.1 × 0.9 in.

(135 × 79 × 23mm)

Max Power Consumption 2W

Max Heat Dissipation 7.0 BTU/h

SOFTWARE FEATURES

Transfer Method Store and Forward

Advanced Functions Green Technology

802.3X Flow Control, Back Pressure

OTHERS

Certification FCC, RoHS

Package Contents 8-Port 10/100Mbps Desktop Switch

Power Adapter

User Guide

Environment Operating Temperature: 0°C~40°C (32°F~104°F);

Storage Temperature: -40°C~70°C (-40°F~158°F);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing

Technical Specifications

Network Ports

  • Number of Ports: 8 × RJ45 Ethernet Ports
  • Port Speed: 10/100 Mbps Auto-Negotiation
  • Auto MDI/MDIX Support: Yes
  • Switching Type: Unmanaged Switch
  • Transmission Method: Store-and-Forward

Standards & Protocols

  • IEEE 802.3 (Ethernet)
  • IEEE 802.3u (Fast Ethernet)
  • IEEE 802.3x (Flow Control)
  • CSMA/CD

Performance

  • Data Transfer Rates:
    • 10/100 Mbps Half Duplex
    • 20/200 Mbps Full Duplex
  • Buffer Memory: 768 Kb
  • IEEE 802.3x Flow Control
  • Non-blocking Switching Architecture

Design

  • Fanless Design
  • Plastic Desktop Enclosure
  • Plug-and-Play Installation
  • No Configuration Required

Power

  • External Power Adapter: 5V DC / 0.6A
  • Input Power: 100–240V AC, 50/60Hz
  • Maximum Power Consumption: 2.05W–2.2W

LED Indicators

  • Power LED
  • Port Activity LEDs (1–8)

Physical Specifications

  • Dimensions (W × D × H):
    • 134.5 × 79 × 22.5 mm
    • (5.3 × 3.1 × 0.9 in.)

Environmental

  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -40°C to 60°C
  • Operating Humidity: 10%–90% (non-condensing)
  • Storage Humidity: 5%–90% (non-condensing)

Package Contents

  • TP-Link TL-SF1008D Switch
  • Power Adapter
  • Installation Guide / User Guide

Certifications

  • CE
  • FCC
  • RoHS
