4 Port 200 MHz VGA Video Splitter
Availablity:
In stock
Rs. 1,950.00

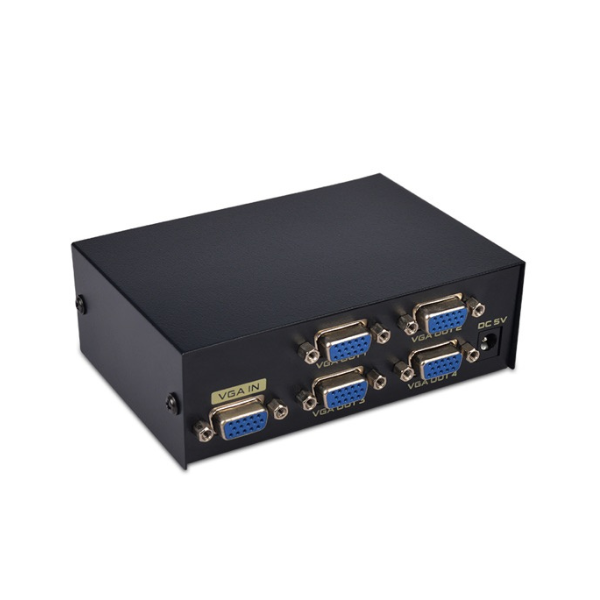

4 Port 200 MHz VGA Video Splitter Display the image of a single VGA video source on 4 screens
SKU: 13654
4 Port 200 MHz VGA Video Splitter – Display the image of a single VGA video source on 4 screens.
Product Type: 4 Port VGA Splitter.
Interface Type: 1 VGA Input, 4 VGA Output.
Bandwidth: 200MHz.
Resolution: 1920 × 1440.
Transmission Distance: 98ft (30m).
Power Input: 110–240V AC, 50/60Hz.
Power Output: DC 5V 1A.
Weight: 0.33kg (0.66lb).
Dimensions: 120 × 80 × 38mm.
Boosts video signal transmission up to 65m.
No software is required.
This 4-port VGA splitter takes a single computer VGA signal and displays it on four analog monitors simultaneously.
It is compatible with most monitors on the market and supports cascading to connect up to 64 monitors.
It also acts as a signal booster, extending video transmission up to 98ft (30m), making it ideal for video broadcasting systems.
This VGA splitter is also suitable for home entertainment, allowing multiple displays for watching sports, movies, presentations, festivals, and other events. It is built for reliable and durable performance.
Technical Specifications
4 PORT 200 MHz VGA VIDEO SPLITTER
Video Connectivity
- Input Ports: 1 × VGA (HD-15 Female)
- Output Ports: 4 × VGA (HD-15 Female)
- Signal Type: Analog VGA Video
- Number of Displays Supported: Up to 4 Monitors/Projectors Simultaneously
Video Performance
- Bandwidth: 200 MHz
-
Maximum Resolution:
- Up to 1920 × 1440 @ 60Hz (model dependent)
- Supports VGA, SVGA, XGA, SXGA, and UXGA resolutions
- Signal Amplification: Built-in Video Signal Booster
-
Transmission Distance:
- Up to 65 m (213 ft.) total distance (depending on cable quality and resolution)
Features
- Duplicates One VGA Source to Four VGA Displays
- Simultaneous Display Output
- Maintains Signal Integrity with Built-in Amplification
- Cascadable Design for Additional Displays (model dependent)
- Plug-and-Play Operation
- No Software or Drivers Required
Controls
- Power Switch: Model Dependent
- Status LED Indicator: Yes
Compatibility
- Desktop PCs
- Laptops with VGA Output
- Projectors
- LCD/LED Monitors with VGA Input
- Digital Signage Systems
- Presentation and Classroom Environments
Power
- External Power Adapter Included
- Input Voltage: 100–240V AC, 50/60Hz
- Output Voltage: Typically 5V DC or 9V DC (varies by manufacturer)
Physical Specifications
- Housing: Metal or High-Quality Plastic Enclosure (model dependent)
- Desktop Installation
- Compact Form Factor
LED Indicators
- Power LED
- Active Signal Status LED (model dependent)
Environmental
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 60°C
- Operating Humidity: 20%–90% (Non-condensing)
- Storage Humidity: 5%–90% (Non-condensing)
Package Contents
- 4-Port 200 MHz VGA Video Splitter
- Power Adapter
- User Manual
