Networking & Connectivity

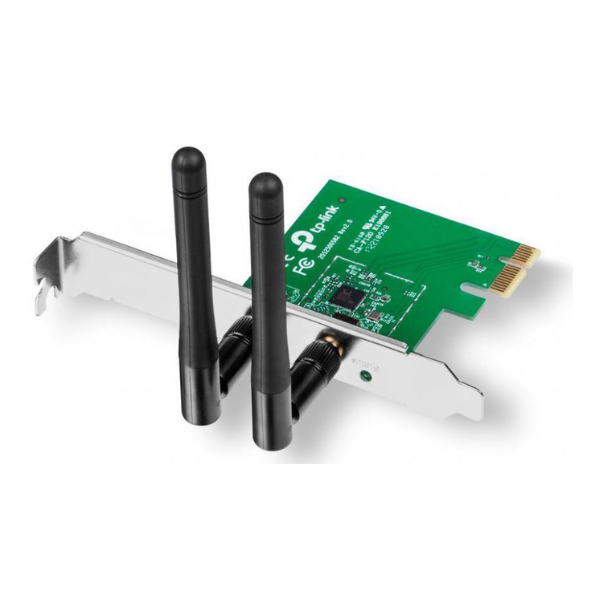

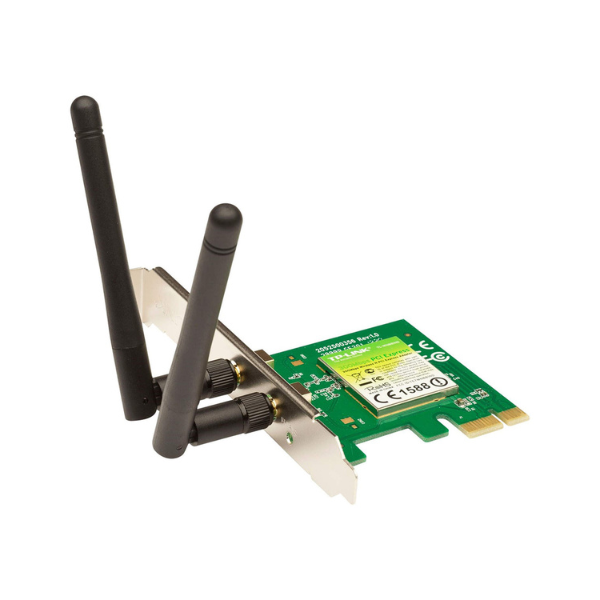

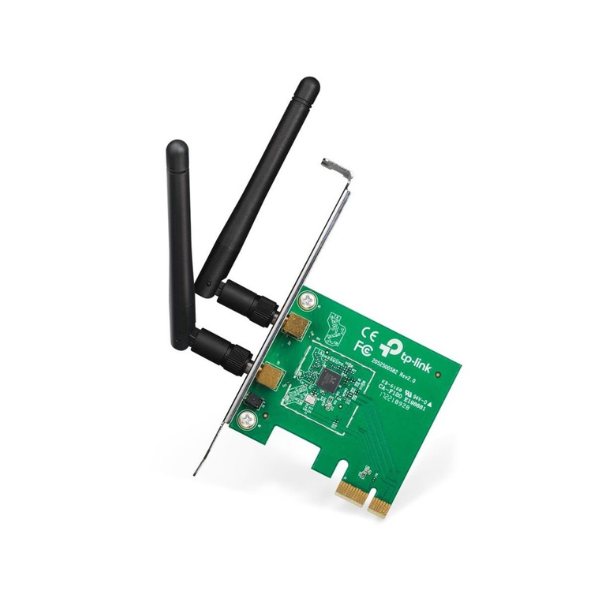

Adapter Tp-Link W/L Pci Exp Wn881nd (2y)
Availablity:
In stock
Rs. 6,950.00
Item Code: NCAT0573 Weight: 200.00GM Brands: Tp-Link Warranty: 2 Years (700 Days Carry In Warranty*) Stock: Yes Model: TL-WN881ND Categories: Network Card / Adapters
SKU: 53663
Features
Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls
2T2R MIMO delivers greater throughput at range versus conventional 1T1R
Easily setup a highly secured wireless link with QSS software embedded
Supports 64/128 WEP, WPA /WPA2/WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1X
Supports Windows 7 32/64bit, Windows XP 32/64bit, Vista 32/64bit
Supports ad-hoc and infrastructure mode
Bundled utility provides quick & hassle free installation
Seamlessly compatible with 802.11n/b/g products
HARDWARE FEATURES
Interface PCI Express(x1)
Dimensions ( W x D x H ) 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)
Antenna Type Detachable Omni Directional (RP-SMA)
Antenna Gain 2dBi
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.400-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP 20dBm(EIRP)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -73dBm@10% PER
54M: -73dBm@10% PER
11M: -89dBm@8% PER
6M: -87dBm@10% PER
1M: -90dBm@8% PER
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Adapter
2x Detachable Omni directional antenna
Resource CD
Quick Installation Guide
System Requirements Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits)
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Technical Specifications
Wireless Technology
- Wireless Standard: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.4 GHz
-
Wireless Speed:
- Up to 300 Mbps (802.11n)
- Up to 54 Mbps (802.11g)
- Up to 11 Mbps (802.11b)
-
Wireless Modes:
- Infrastructure Mode
- Ad-Hoc Mode
Interface
- Interface Type: PCI Express (PCIe x1)
- Antenna Interface: 2 × RP-SMA Connectors
- Adapter Type: Internal Wireless Network Adapter
Antennas
- Number of Antennas: 2 Detachable Omni-Directional Antennas
- Antenna Gain: 2 dBi
- Adjustable Antenna Positioning
Security
- 64/128-bit WEP
- WPA/WPA2
- WPA-PSK/WPA2-PSK
- IEEE 802.1X Authentication
- TKIP/AES Encryption
Performance
- MIMO Technology for Improved Coverage and Stability
- CCA (Clear Channel Assessment) Technology
- Enhanced Wireless Signal Penetration
- Reliable Wireless Connectivity for Desktop PCs
Buttons
- No External Buttons
LED Indicators
- Wireless Link / Activity LED
Operating System Support
- Windows® XP (32/64-bit)
- Windows Vista® (32/64-bit)
- Windows® 7 (32/64-bit)
- Windows® 8 (32/64-bit)
- Windows® 8.1 (32/64-bit)
- Linux® Support (driver dependent)
Physical Specifications
-
Dimensions (W × D × H):
- 120.8 × 78.5 × 21.5 mm
- (4.8 × 3.1 × 0.8 in.)
- Low-Profile Bracket Included
- Internal Desktop PCIe Card Design
Features
- 300 Mbps Wireless N Speed
- PCI Express Interface for High-Speed Connectivity
- MIMO (Multiple Input Multiple Output) Technology
- Supports Soft AP Mode
- Easy Wireless Security Setup via WPS (Software Utility)
- Backward Compatible with 802.11b/g Networks
Certifications
- CE
- FCC
- RoHS
- Wi-Fi Certified
Environmental
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 10%–90% (Non-condensing)
- Storage Humidity: 5%–90% (Non-condensing)
Package Contents
- TP-Link TL-WN881ND Wireless N PCI Express Adapter
- 2 × Detachable Antennas
- Low-Profile Bracket
- Resource CD
- Quick Installation Guide
