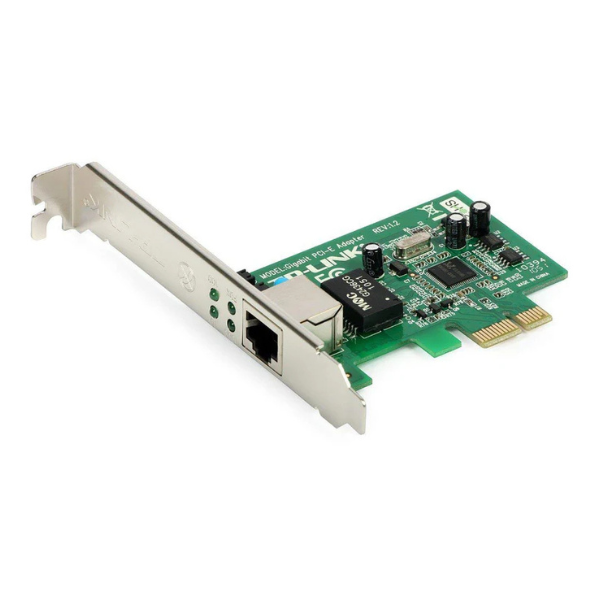

N/W Card Tp-Link G/Bt Pci Ex Tg-3468 (1y)

Availablity: In stock

Rs. 4,650.00

Item Code: NCAT1049 Weight: 95.00GM Brands: Tp-Link Warranty: One Year (350 Days Carry In Warranty*) Stock: Yes Model: TG-3468 Categories: Network Card / Adapters

SKU: 45611

Highlights:
10/100/1000Mbps PCIe Adapter
32-bit PCIe interface, saving the finite chassis space
Wake-on-LAN, convenient to manage over LAN

Wake-on-LAN supporting
Auto-Negotiation and Auto MDI/MDIX
Supports IEEE 802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode
Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
Supports power down/link down power saving
DOS/Win98SE/Me/2000/XP/Vista/Linux/Novell Netware

HARDWARE FEATURES Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Interface 32-bit PCI Express
1 10/100/1000Mbps RJ45 port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
Data Rates 10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
LED Indicator 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Flow Control IEEE 802.3x Flow Control (Full-Duplex)



OTHERS
Certification CE, FCC, RoHS
Package Contents Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide
System Requirements Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Technical Specifications

Network Interface

  • Interface: 32-bit PCI Express (PCIe)
  • Port: 1 × RJ45 Ethernet Port
  • Port Speed: 10/100/1000 Mbps Auto-Negotiation
  • Auto MDI/MDIX Support: Yes
  • Wake-on-LAN (WOL): Supported

Standards & Protocols

  • IEEE 802.3 (Ethernet)
  • IEEE 802.3u (Fast Ethernet)
  • IEEE 802.3ab (Gigabit Ethernet)
  • IEEE 802.3x (Flow Control)
  • IEEE 802.1p (Priority Tagging)
  • IEEE 802.1q (VLAN Tagging)
  • CSMA/CD
  • TCP/IP

Performance

  • Data Transfer Rates:
    • 10/100/1000 Mbps Half-Duplex
    • 20/200/2000 Mbps Full-Duplex
  • IEEE 802.3x Flow Control
  • Auto-Negotiation Technology
  • High-Speed Gigabit Ethernet Connectivity

Network Media

  • 10BASE-T:
    • Cat 3/4/5 UTP Cable (up to 100m)
    • EIA/TIA-568 100Ω STP (up to 100m)
  • 100BASE-TX:
    • Cat 5/5e UTP Cable (up to 100m)
    • EIA/TIA-568 100Ω STP (up to 100m)
  • 1000BASE-T:
    • Cat 5/5e UTP Cable (up to 100m)

LED Indicators

  • 1000 Mbps Link/Activity
  • 100 Mbps Link/Activity
  • 10 Mbps Link/Activity

Operating System Support

  • Windows® 11
  • Windows® 10
  • Windows® 8.1
  • Windows® 8
  • Windows® 7
  • Windows® Vista
  • Windows® XP
  • 32-bit and 64-bit versions supported

Physical Specifications

  • Dimensions (W × D × H):
    • 120.8 × 78.5 × 21.5 mm
    • (4.8 × 3.1 × 0.8 in.)
  • Low-Profile Bracket Included
  • Standard Desktop PCIe Card Design

Features

  • Gigabit Ethernet Connectivity
  • Auto Speed Negotiation
  • Wake-on-LAN (WOL)
  • VLAN Tagging Support
  • Priority Queue Support (802.1p)
  • Plug-and-Play Installation on Modern Operating Systems

Certifications

  • CE
  • FCC
  • RoHS

Environmental

  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -40°C to 70°C
  • Operating Humidity: 10%–90% (Non-condensing)
  • Storage Humidity: 5%–90% (Non-condensing)

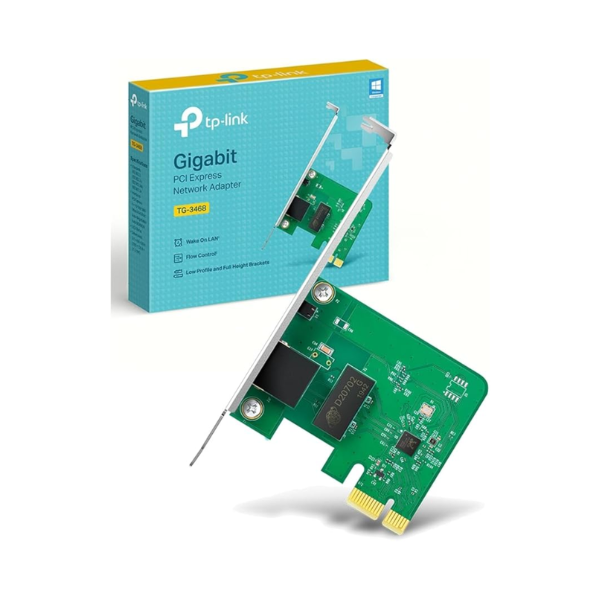

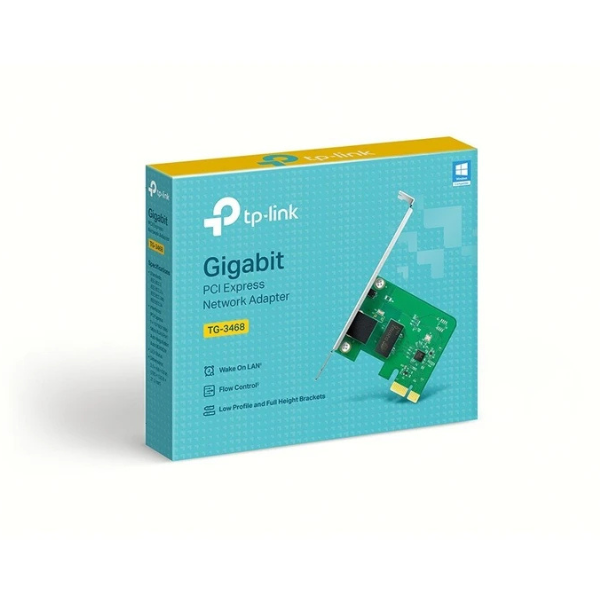

Package Contents

  • TP-Link TG-3468 Gigabit PCI Express Network Adapter
  • Low-Profile Bracket
  • Resource CD
  • Quick Installation Guide
