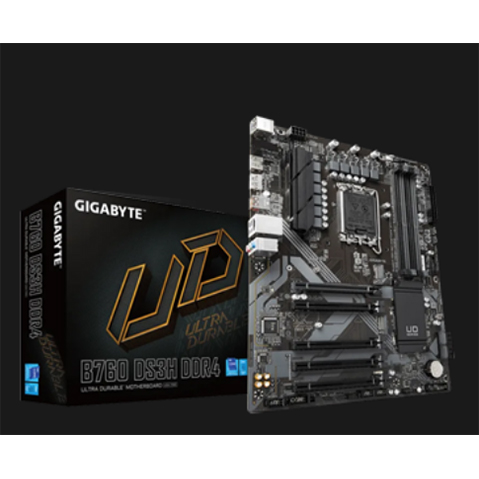

Gigabyte B760 DS3H DDR4 Motherboard

Availablity: Out of stock

Rs. 61,500.00

Supports Intel® Core™ 14th/ 13th /12th processors Unparalleled Performance：Hybrid 8+2+1 Phases Digital VRM Solution Dual Channel DDR4：4*DIMMs XMP Memory Module Support Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design Fast Networks：GbE LAN Extended Connectivity：Rear USB-C® 20Gb/s, DP, HDMI Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

SKU: Gigabyte B760 DS3H DDR4 Motherboard

Payment Methods

CASH

Rs.61,500.00 LKR


BANK DEPOSIT

Rs.61,500.00 LKR


Visa / MasterCard

Rs.62,422.50 LKR


American Express

Rs.63,037.50 LKR


KOKO

Rs.65,497.50 LKR

3 × Rs.21,832.50


Technical Specifications

Gigabyte B760 DS3H DDR4 Motherboard
CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)
Chipset

Intel® B760 Express Chipset
Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.)
Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)


Expansion Slots
CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
(PCIEX1_1, PCIEX1_3~PCIEX1_5)
Storage Interface

CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB

Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support

1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

2 x USB 3.2 Gen 1 ports available through the internal USB header

4 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
      • 1 x 24-pin ATX main power connector
      • 1 x 8-pin ATX 12V power connector
      • 1 x CPU fan header
      • 1 x CPU fan/water cooling pump header
      • 3 x system fan headers
      • 1 x system fan/water cooling pump header
      • 2 x addressable LED strip headers
      • 2 x RGB LED strip headers
      • 2 x M.2 Socket 3 connectors
      • 4 x SATA 6Gb/s connectors
      • 1 x front panel header
      • 1 x front panel audio header
      • 1 x S/PDIF Out header
      • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
      • 1 x USB 3.2 Gen 1 header
      • 2 x USB 2.0/1.1 headers
      • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
      • 1 x serial port header
      • 1 x Q-Flash Plus button
      • 1 x reset button
      • 1 x reset jumper
      • 1 x Clear CMOS jumper
Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
    3. 1 x USB 3.2 Gen 2 Type-A port (red)
    4. 4 x USB 2.0/1.1 ports
    5. 1 x HDMI port
    6. 1 x DisplayPort
    7. 1 x RJ-45 port
    8. 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm


BrandGigabyte
ChipsetIntel B760
Socket typeLGA1700
Warranty03 Years
Memory Type
