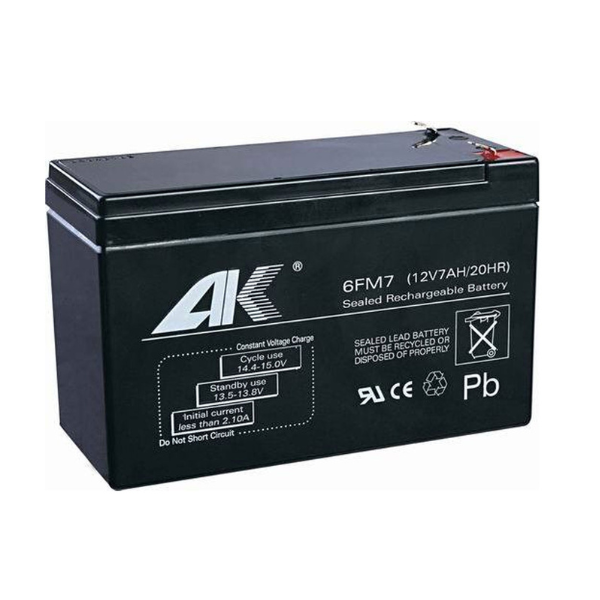

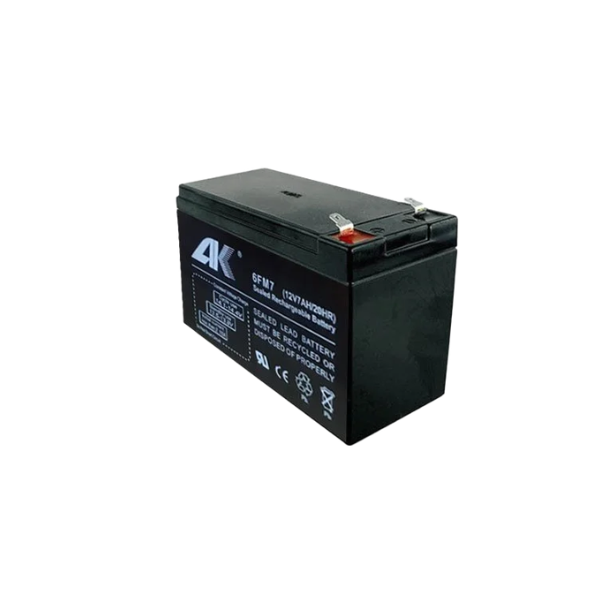

AK 12V 7AH UPS BATTERY (1y)

Availablity: In stock

Rs. 4,600.00

Reliable Power in a Compact Design The AK 12V 7AH UPS Battery is built for dependable performance, offering uninterrupted backup power for a variety of home and commercial applications. With its compact footprint and robust construction, it fits easily i

SKU: 35648

CategoryDetails
BrandAK Power Systems
Model NumberAK1270
Battery TypeSealed Lead Acid (SLA), Valve Regulated Lead Acid (VRLA)
Voltage Rating12 Volts
Rated Capacity7 Ampere Hours (AH) at 20-hour rate
Battery ChemistryAGM (Absorbent Glass Mat)
Design Life3–5 Years (under standard conditions)
Warranty1 Year Manufacturer Warranty
Nominal Energy84 Wh (Watt-hours)
Charging Voltage (Cycle Use)14.4 – 15.0V
Charging Voltage (Standby Use)13.5 – 13.8V
Maximum Charging Current≤ 2.1 Amps
Terminal TypeF1 (Faston Tab 0.187” or equivalent)
Internal ResistanceApprox. 28 milliohms (fully charged)
Self-Discharge Rate≤ 3% per month at 25°C
Operating Temperature (Discharge)-15°C to +50°C
Operating Temperature (Charge)0°C to +40°C
Operating Temperature (Storage)-15°C to +40°C
Case MaterialABS Plastic – Flame Retardant (Optional: UL94-HB or UL94-V0 rated)
Battery Dimensions (L×W×H)151 mm × 65 mm × 94 mm (±1 mm)
Total Height with Terminals100 mm (±1 mm)
Approximate Weight2.0 – 2.3 kg
Recharge Time4–6 Hours (to 90% capacity with standard charger)
Cycle LifeUp to 260 cycles at 100% DOD, higher with partial depth discharge
Mounting PositionCan be installed in any orientation (except upside-down)
CertificationsISO 9001, ISO 14001, CE, RoHS compliant
ApplicationsHome UPS, Emergency Lighting, Alarm Systems, CCTV, Medical Equipment, POS, Solar Systems

Technical Specifications

Battery

Battery Type: Sealed Lead Acid (SLA) Rechargeable Battery
Technology: AGM (Absorbent Glass Mat)
Nominal Voltage: 12V
Capacity: 7Ah (20-Hour Rate)
Battery Chemistry: Lead Acid
Maintenance: Maintenance-Free, Non-Spillable Design

Performance

Maximum Charging Current: Up to 2.1A – 2.3A
Cycle Charging Voltage: 14.0V – 14.4V
Standby Charging Voltage: 13.0V – 13.8V
Low Self-Discharge Rate
Reliable Backup Power for UPS Applications

Reliability

Leak-Proof Construction
Valve Regulated Lead Acid (VRLA) Design
Can Operate in Various Mounting Positions
High Discharge Performance
Maintenance-Free Operation

Applications

Uninterruptible Power Supplies (UPS)
Security & Alarm Systems
Emergency Lighting Systems
Telecommunication Equipment
Access Control Systems
Backup Power Systems

Physical Specifications

Dimensions (L × W × H):
151 × 65 × 94 mm
(5.94 × 2.56 × 3.70 in.)

Weight: Approx. 2.0 – 2.5 kg
Terminal Type: F1 or F2 Faston Terminal (Model Dependent)
Color: Black

Environmental

Operating Temperature: -20°C to +50°C
Recommended Operating Temperature: 25°C
Storage Temperature: -20°C to +50°C
Low Self-Discharge During Storage

Warranty

Warranty Period: 1 Year Limited Warranty

Package Contents

  • AK 12V 7Ah UPS Battery
  • User Guide / Warranty Information

Key Features

  • 12V 7Ah sealed lead-acid rechargeable battery.
  • AGM technology for efficient and reliable performance.
  • Maintenance-free and leak-proof design.
  • Suitable for UPS, security, and emergency backup systems.
  • Compact standard size compatible with most 12V 7Ah UPS units.
  • 1-year warranty for dependable operation.
